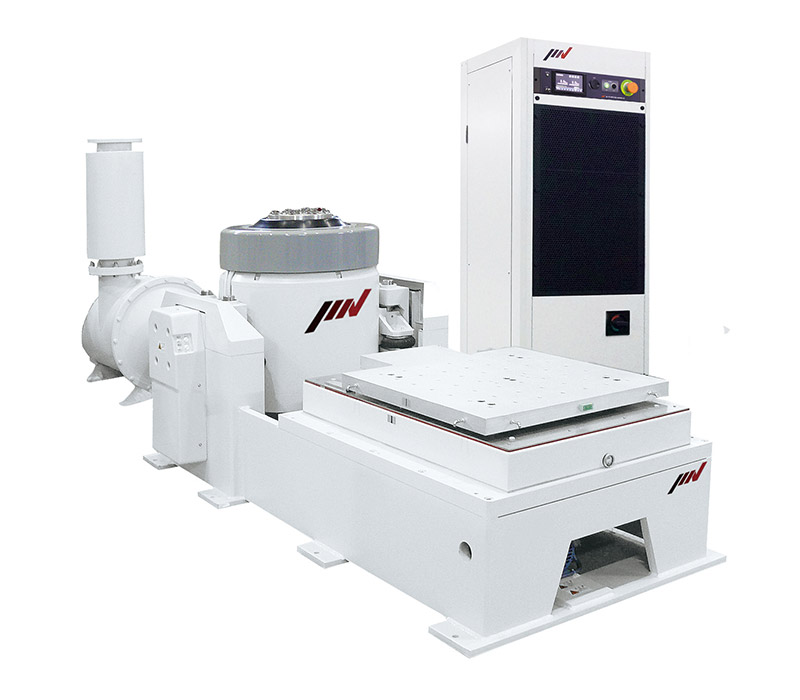

Ideal for high velocity, high-displacement testing, the J-Series Large Displacement Type Vibration Test System from IMV is a high-functionality system that offers both usability and durability coupled with functions and technology that is exclusive to the IMV range of air-cooled vibration test systems.

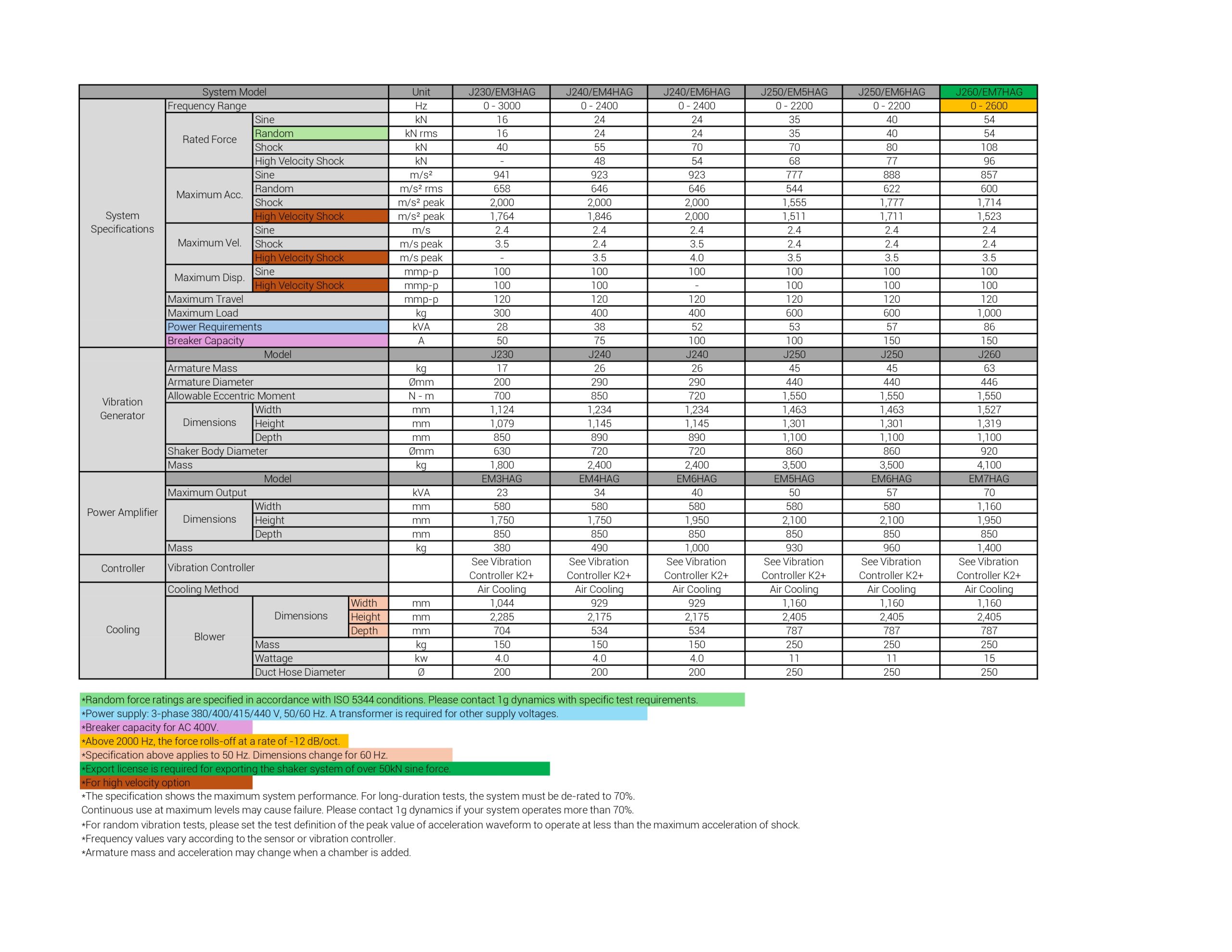

Designed to cope with long duration shock tests the J-Series Shaker featured an expanded maximum test range, including a maximum velocity of Sine force: 2.4m/s, a maximum velocity of Shock force of 4.6m.s and a maximum displacement of 100mm.

IMV’s Parallel Support Guide System (PSG) supports the upper armature. The PSG significantly improves both durability, reliability of the system resulting in a higher quality of vibration.

The PSG’s compact design provides adequate stiffness and rigidity when compared to a roller support system. This is achieved by an alternative alignment of gears that have a unique curve called an involute curve.
